Tesla Wall Connector – Technical Overview & Specifications

Overview

The Tesla Wall Connector is a high-performance AC charging solution designed for Tesla electric vehicles and compatible Type 2 EVs.
This article focuses exclusively on the technical specifications, electrical characteristics, and design principles of the Tesla Wall Connector.

No installation or service-related information is included.

Charging Power & Electrical Specifications

Tesla Wall Connector units are designed to support fast and efficient residential charging.

• Charging power: Up to 11 kW (AC)
• Connection: Type 2 (IEC 62196-2)
• Grid compatibility:
  • Single-phase
  • Three-phase
• Nominal voltage: 230 V / 400 V
• Frequency: 50 Hz
• Maximum current: Up to 16 A (3-phase)

These specifications allow optimized home charging while maintaining electrical safety and grid stability.

Safety & Protection Systems

Tesla integrates multiple safety mechanisms into the Wall Connector design.

• Integrated DC leakage detection
• Over-current and short-circuit protection
• Ground fault monitoring
• Temperature sensors with automatic power reduction
• Automatic charging interruption during fault conditions
• Compliance with IEC 61851-1 standards

These systems ensure safe operation during daily and long-term use.

Smart Connectivity & Control

Tesla Wall Connectors offer advanced smart charging features.

• Wi-Fi connectivity
• Tesla vehicle and account integration
• Load sharing between multiple wall connectors
• Remote monitoring and diagnostics
• Over-the-air firmware updates

Smart connectivity allows flexible energy management and future feature enhancements.

Design & Build Quality

Tesla Wall Connectors are engineered for durability and modern aesthetics.

• Minimalist Tesla design language
• Indoor and outdoor suitability (IP-rated enclosure)
• Integrated cable holder
• Compact wall-mounted form factor

The design ensures reliability in garages, carports, and exterior walls.

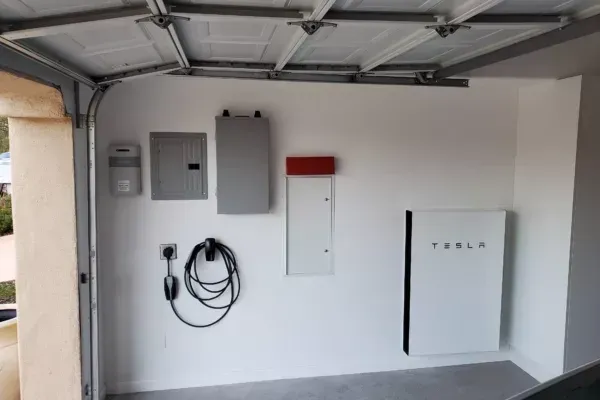

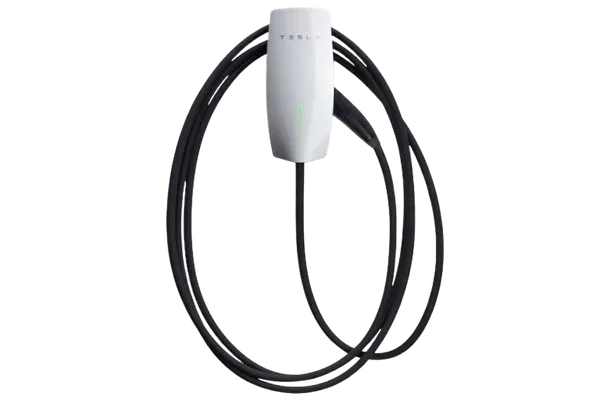

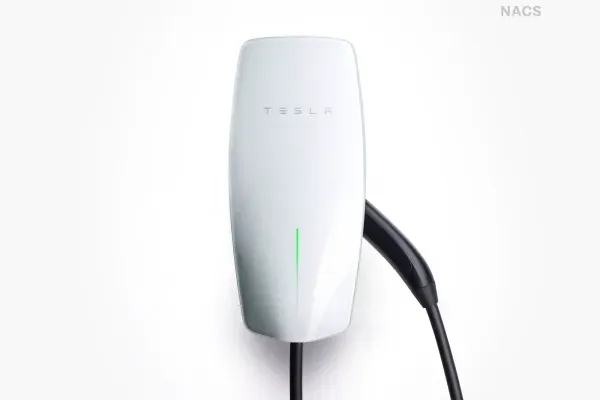

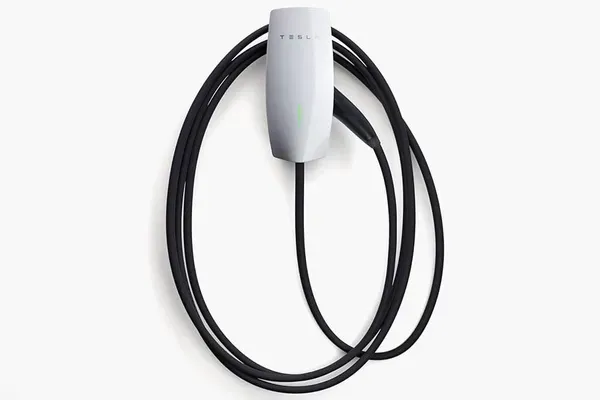

Wall Connector Model Gallery

Transparent Pricing Reference

Indicative pricing ranges for Tesla Wall Connector products:
